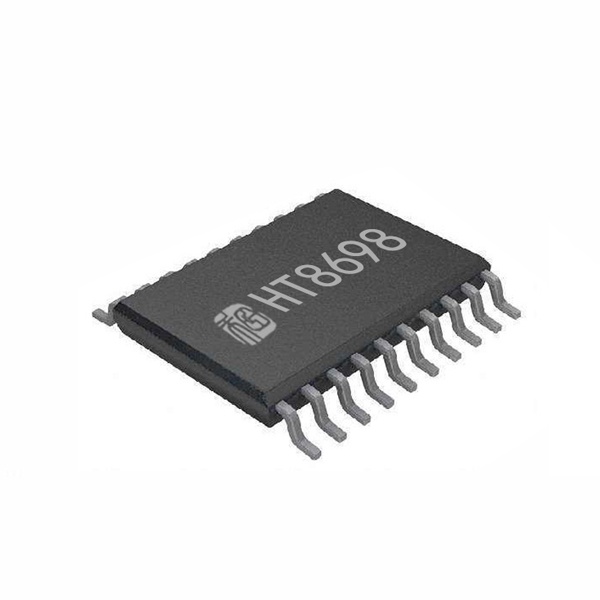

HT8698 integrates a boost converter with a filter-less stereo class D audio power amplifier to provide 2×4.75W continuous power into a 4Ω speaker when operating from a Li-battery voltage boosted to 6V. Meanwhile, the boost output voltage is adjustable.
HT8698 features Anti-Clipping Function (ACF) which detects output signal clip due to the over input signal and suppresses the output signal clip automatically. Also, the ACF function can adapt the output clip caused by power supply voltage down with battery. It can significantly improve the sound quality, creating a very comfortable musical enjoyment, and to protect the speakers from overload damage. It also supplies ACF OFF mode.
Class AB amplifier mode is also available for HT8698. Once the EMI Interference from class D and Boost Converter becomes an annoying problem, HT8698 can be changed into Class AB mode.
HT8698 has a filter-less modulation circuit which directly drives speakers while realizes low distortion and low noise characteristics. Thanks to filter-less, circuit design with fewer external parts can be made in portable applications.
HT8698 has the independent Shutdown function which can minimize the power consumption at standby and MUTE function. As for protection function, over current protection, over temperature protection function, and low supply voltage malfunction preventing function are also prepared.
Part No. | Available Working Mode |
HT8698B6xxxx | Class D |
HT8698P5xxxx | Class D and Class AB |
FEATURE
| APPLICATIONS
|
TERMINAL FUNCTION
TSSOP Terminal No. | Name | I/O | ESD Protection | Function |
1,20 | DGND | GND | - | Power Ground for Boost converter |
2 | PVDDL | Power | - | Boost Converter Output Voltage, Power Supply for Class D Left Channel |
3 | OUTL- | O | - | Left channel negative output terminal (BTL-) |
4 | PGNDL | GND | - | Power Ground for Class D Left Channel |
5 | OUTL+ | O | Left channel positive output (BTL+) | |
6 | INL+ | I | PN | Left channel positive input terminal (differential +) |
7 | INL- | I | PN | Left channel negative input terminal (differential -) |
8 | PVDDR | Power | - | Boost Converter Output Voltage, Power Supply for Class D Right Channel |
9 | OUTR- | O | - | Right channel negative output terminal (BTL-) |
10 | PGNDR | GND | - | Power Ground for Class D Right Channel |
11 | OUTR+ | O | Right channel positive output terminal (BTL+) | |
12 | INR+ | I | PN | Right channel positive input terminal (differential +) |
13 | INR- | I | PN | Right channel negative input terminal (differential -) |
14 | CTRL | I | PN | Shutdown, Class AB and ACF control terminal |
15 | AGND | GND | PN | Analog Ground |
16 | VBAT | Power | PN | Power Supply |
17 | FB | I | PN | Regulator Feedback Input |
18,19 | LX | I | - | Internal Switch Input |
I: Input O: Output
