The HT5010/1/2 family is a low-cost stereo digital to analog converter, including interpolation, multibit D/A conversion and output analog filtering in a 10-pin package.
The device family can accept multiple audio formats up to 24-bit word length.
The device family is based on an advanced multi-bit Δ-Σ modulator to convert data into two channel analog outputs with a linear analog low-pass filter. The multi-bit Δ-Σ modulator makes the device with very low sensitivity to clock jitter and very low out-of-band noise. It also includes auto speed mode detection using both sample rate and master clock ratio as a method of auto-selecting sampling rates between 2 kHz and 200 kHz.
The device family contains on-chip digital deemphasis, operates from a single +3.3 V power supply, and requires minimal support circuitry. These features are ideal for DVD players & recorders, digital televisions, home theater and set top box products, and automotive audio systems.

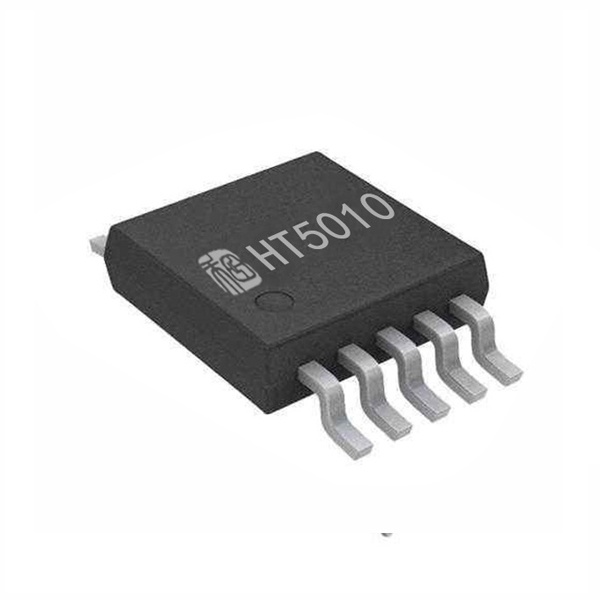

The device family is available in a 10-pin MSOP package.
FEATURES
| APPLICATIONS
|
TERMINAL FUNCTION
Terminal No. | NAME | I/O | Description |
1 | SDIN | I | Serial audio data input. |
2 | DEM/SCLK | I | De-emphasis / external serial clock input |
3 | LRCK | I | Left right clock |
4 | MCLK | I | Master clock |
5 | VQ | O | Filter connection for internal quiescent voltage |
6 | FILT+ | O | Positive reference voltage for the internal sampling |
7 | AOUTL | O | Left channel analog output |
8 | GND | G | Ground |
9 | VA | P | Analog power supply |
10 | AOUTR | O | Right channel analog output |
