特點(diǎn)

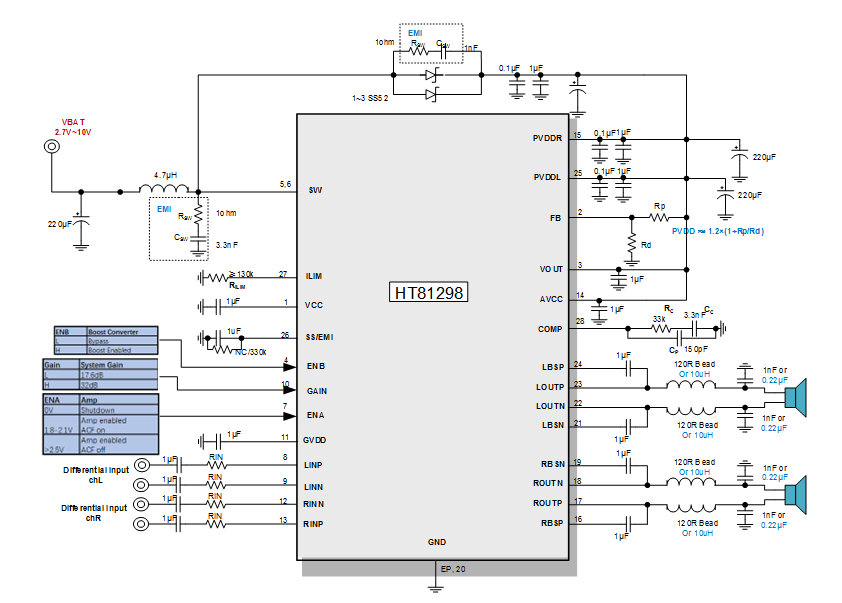

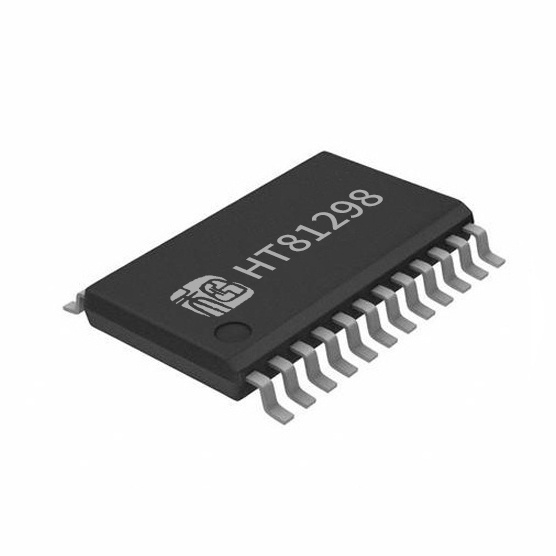

• HT81298

  Output Power (fIN = 1kHz, RL=4?, BTL)

  VBAT = 3.7V, 2×10W (VOUT=9.5V, THD+N = 10%)

  VBAT = 7.2V, 2×16W (VOUT=12V, THD+N= 10%)

  Output Power (fIN = 1kHz, RL=4?, PBTL)

  VBAT = 3.7V, 20W (VOUT=12V, THD+N= 10%)

• HT81698

  Output Power (fIN = 1kHz, RL=4?, BTL)

  VBAT = 7.2V, 2×25W (VOUT=14.8V, THD+N= 10%)

  VBAT = 3.7V, 2×10W (VOUT=9V, THD+N = 10%)

  Output Power (fIN = 1kHz, RL=2?, PBTL)

  VBAT = 7.2V, 50W (VOUT=14.8V, THD+N= 10%)

  VBAT = 3.7V, 20W (VOUT=9V, THD+N = 10%)

  Output Power (fIN = 1kHz, RL=4?, PBTL)

  VBAT = 3.7V, 20W (VOUT=12V, THD+N = 10%)

• HT81696

  Output Power (fIN = 1kHz, RL=4?)

  VBAT = 7.2V, 2×25W (VOUT=14.8V, THD+N= 10%)

  VBAT = 3.7V, 2×10W (VOUT=9V, THD+N = 10%)

應(yīng)用

• 智能音響

• 無線音響

• 便攜式音箱

• 2.1聲道小音箱

• 拉桿音箱

• 便攜式游戲機(jī)
