HT97230為差分輸入、可直接輸出的線路驅動器/耳機放大器。5V供電時，器件為1kΩ負載提供3VRMS輸出驅動；3.3V供電時，為600Ω負載提供2VRMS輸出驅動。5V供電時，器件為32Ω耳機負載提供125mW驅動。IC具有6dB內部固定增益，也可利用外部電阻設置增益（目前僅提供外部電阻設置增益版本，其他版本需預定）。IC在整個音頻頻帶內提供優異的THD+N。
HT97230有兩個不同開啟時間(tON)版本，版本A、C和E的導通時間tON為5.5ms，用于耳機驅動；B和D則具有130ms的tON，用于機頂盒設計（目前僅提供A版本，其他版本需預定）。內部電荷泵對輸入電源反相，產生負電源。放大器的輸出級由輸入正電源和電荷泵輸出負電源供電，雙極性供電使得輸出偏置在零電位，省去了大尺寸、容易引入失真的輸出耦合電容。ICSD開關時沒有咔嗒/噼噗聲。
HT97230具有3D環繞模式，能夠在立體聲耳機上創造3D環繞聲的感覺。HT97220還有具有低音增強模式，可依據耳機頻響特性，對某個頻段的低音進行不同程度的提升增強，達到低音增強的效果。

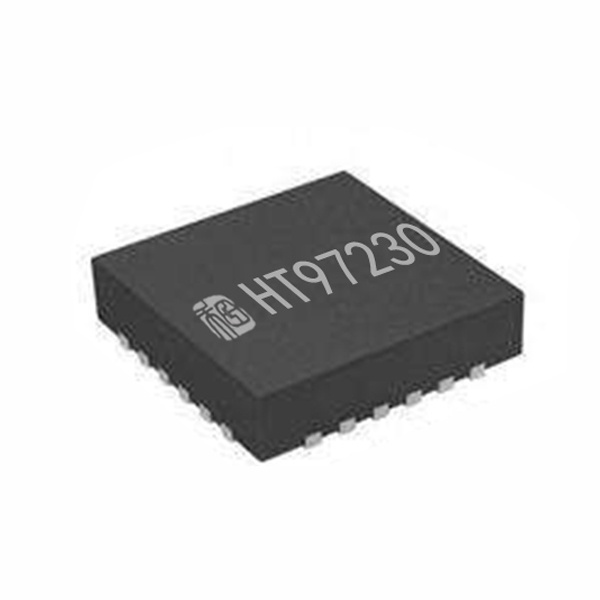

HT97230提供無鉛無鹵QFN24L-PP封裝，提供QFN20L-PP封裝的定制需求。
| 價格:￥ | 庫存99999 |
數量:
|
特點
| 應用
|

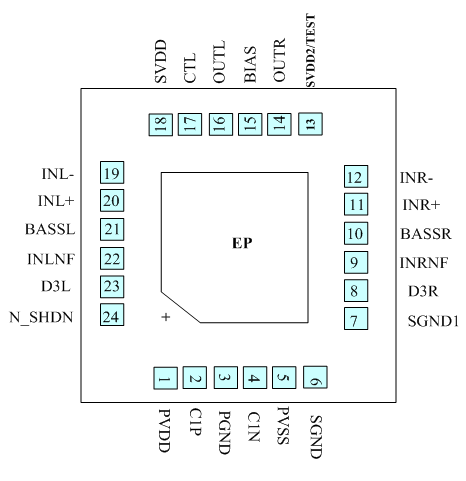

引腳定義
PIN | NAME | FUNCTION |
1 | PVDD | Charge-Pump Power-Supply Input. Bypass to PGND with 1uF. |
2 | C1P | Positive Flying Capacitor Connection. Connect a 1uF capacitor between C1P and C1N. |
3 | PGND | Power Ground. Connect PGND and SGND together at the system ground plane. |
4 | C1N | Negative Flying Capacitor Connection. Connect a 1uF capacitor between C1P and C1N. |
5 | PVSS | Negative Charge-Pump Output. Bypass to PGND with 1uF. |
6 | SGND | Signal Ground. Connect PGND and SGND, SGND1 together at the system ground plane. |
7 | SGND1 | Signal Ground. Connect PGND and SGND, SGND1 together at the system ground plane. |
8 | D3R | 3D control pin. |
9 | INRNF | Right channel feedback. |
10 | BASSR | Right channel Bass control output. |
11 | INR+ | Right Positive Polarity Input |
12 | INR- | Right Negative Polarity Input |
13 | SVDD2 /TEST | Signal Path Power-Supply Input. Bypass to PGND with 1uF. Connect directly to PVDD. |
14 | OUTR | Right Direct Drive Output |
15 | BIAS | Internal Supply Node. Bypass to PGND with 0.1uF. |
16 | OUTL | Left Direct Drive Output |
17 | CTL | 3D and Bass function control. |
18 | SVDD | Signal Path Power-Supply Input. Bypass to PGND with 1uF. Connect directly to PVDD. |
19 | INL- | Left Negative Polarity Input |
20 | INL+ | Left Positive Polarity Input |
21 | BASSL | Left channel Bass control output. |
22 | INLNF | Left channel feedback. |
23 | D3L | 3D control pin. |
24 | N_SHDN | Active-Low Shutdown. Drive N_SHDN high for normal operation. |
EP | Exposed Pad. Connect at the system ground plane. |
